Schedule A Product Line Presentation

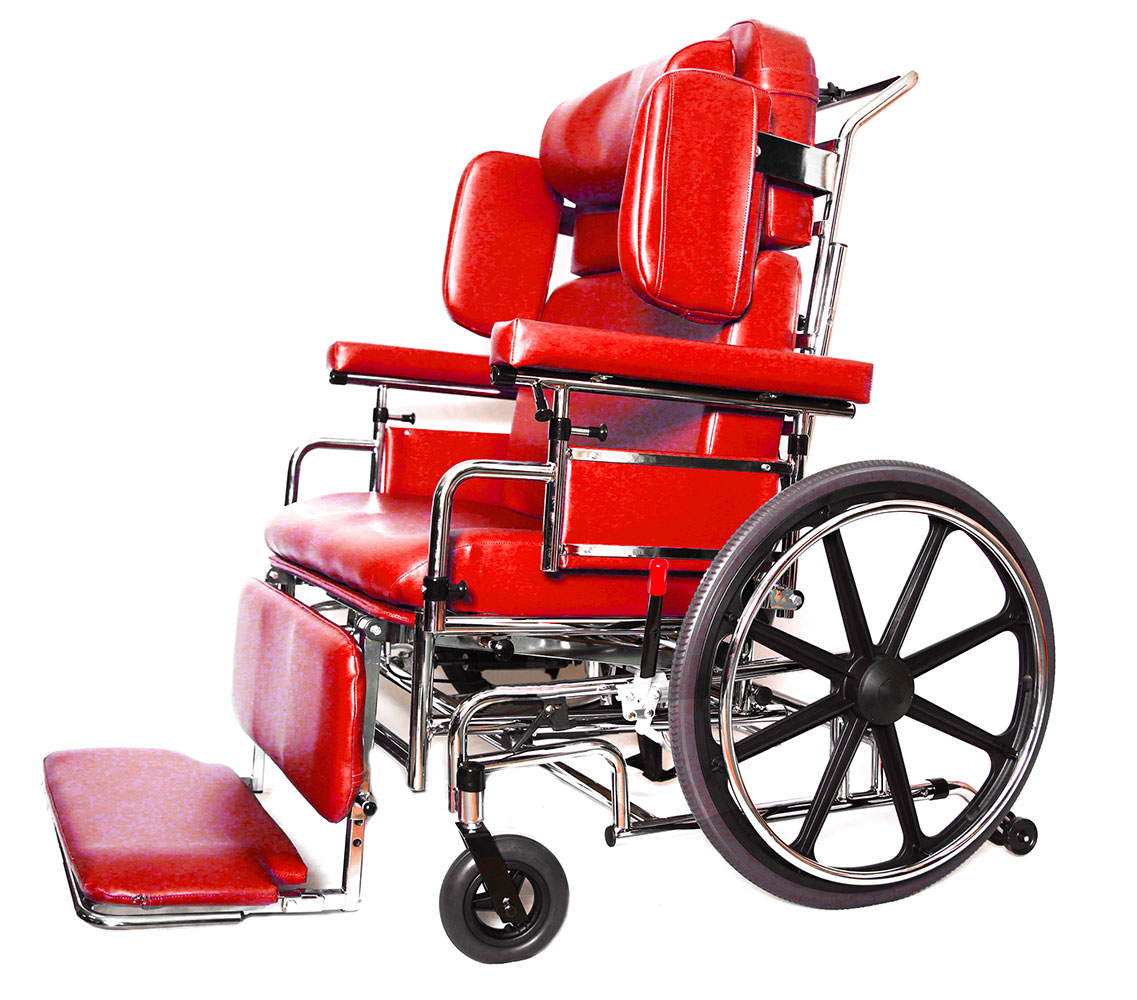

The GTR is a geriatric tilt and recline steel frame wheelchair, lined with steel back panels for extra strength and comes with 4 casters, 3 total lock and 1 directional. The GTR with Rear Wheel Upgrade differs in the fact that it includes 2 rear wheels instead of 2 casters in the back, with the frame designed to accommodate.

Standard Features

Frame & Upholstery

16″ and 18″ chair widths

15″ to 19″ chair depths (infinite)

GTR: 19″ and 21″ seat heights (top of seat cushion)

GTR w/ Rear Wheel Upgrade: 17.5″, 18.5″, 19.5″ and 21″ seat heights (top of seat cushion)

29″ standard back height

Durable chrome finish

“Formfit” tray

Unique one side adjustment for tray release, seat depth, legrest & footrest

Adjustable, removable contoured headwings & headrest cushion

Contoured upholstered seat & back with flip-down feature

Vinyl upholstery in six colour choices

Tilt

0-30 degrees of infinite tilt adjustment

90 – 120 degrees of infinite recline adjustment

Anti-tippers

Armrests & Footrests

Durable padded arm pads

Flip back removable arms

Elevating legrest with fold-in footrest

Wheels

GTR: (3) – 5″ total lock casters; (1) – 5″ directional lock caster

GTR w/ Rear Wheel Upgrade: 5″, 6″ or 8″ casters; 20″, 22″ or 24″ treaded urethane tires; Durable chrome handrims

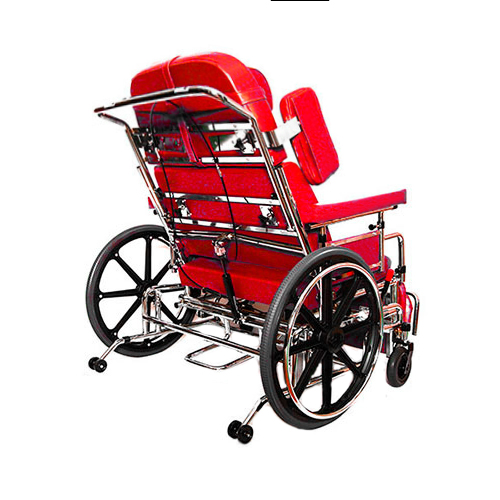

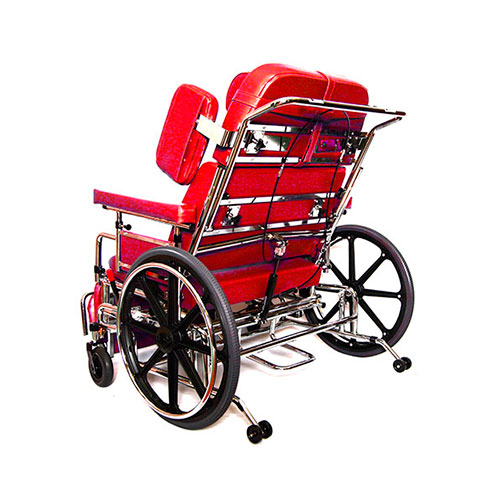

All Steel Construction

Fold Down Back

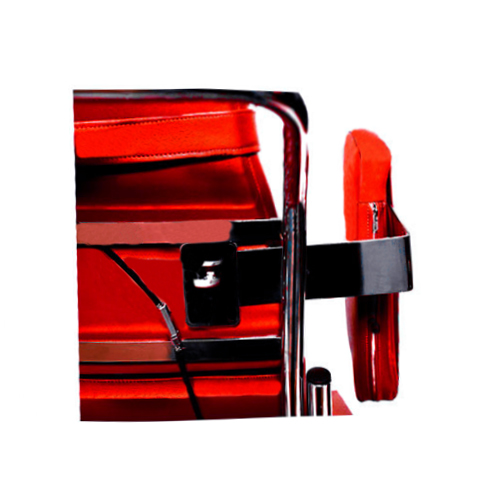

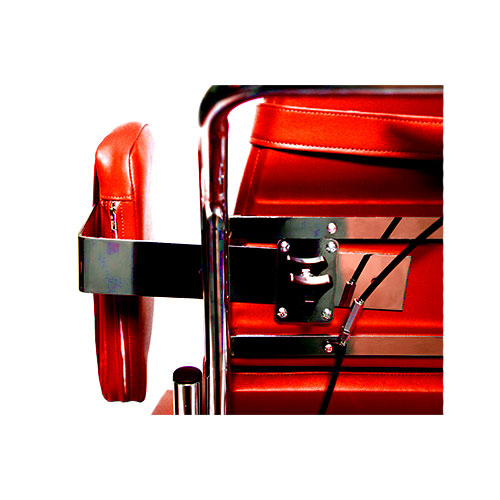

Adjustable Laterals

Tilt & Recline

Seat Base-to-Floor Height and Wheel Combinations

Seat Base-to-Floor Height Rear Wheel Caster
17.50" 20" 5"
18.50" 20" 5"
19.50" 22" 5"
19.50" 22" 6"
21.00" 24" 6"

Accessories & Options

Non-standard seat width

Non-standard back height

Individual, swing away, removable legrest

Grey molded plastic tray – 16″ or 18″ only

Solid seat base with removable cushion

5″, 6″ or 8″ heavy duty casters

6″ or 9″ brake extensions

Side bolsters – 2″

Pommel – velcro

I.V. pole adjustable or non-adjustable

Oxygen tank holder

See the full list of accessories on our order form

Warranty

5 year warranty on frame

2 year warranty on additional components
